Image generation

The most popular and successful application of creative AI today is image generation: learning latent visual spaces and sampling from them to create entirely new pictures, interpolated from real ones — pictures of imaginary people, imaginary places, imaginary cats and dogs, and so on.

Deep learning for image generation

In this section and the next, we'll review some high-level concepts pertaining to image generation, alongside implementation details relative to two of the main techniques in this domain: variational autoencoders (VAEs) and diffusion models. Do note that the techniques we present here aren't specific to images — you could develop latent spaces of sound or music using similar models — but in practice, the most interesting results so far have been obtained with pictures, and that's what we focus on here.

Sampling from latent spaces of images

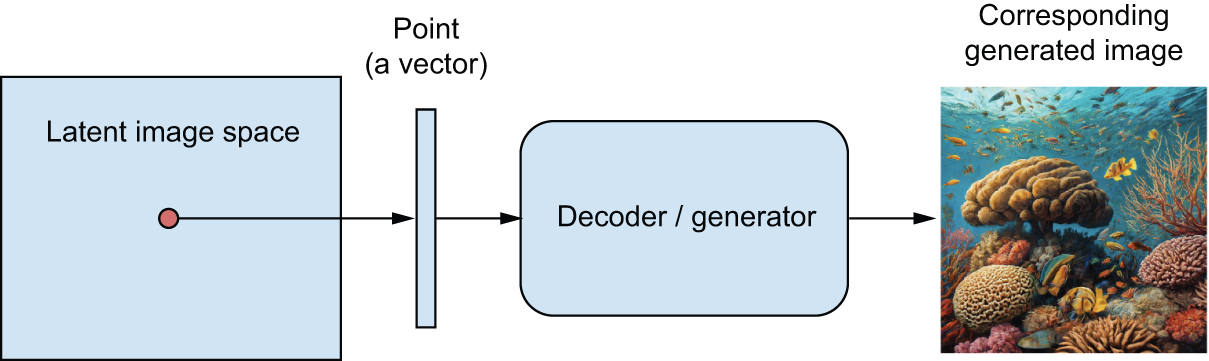

The key idea of image generation is to develop a low-dimensional latent space of representations (which, like everything else in deep learning, is a vector space) where any point can be mapped to a "valid" image: an image that looks like the real thing. The module capable of realizing this mapping, taking as input a latent point and outputting an image (a grid of pixels), is usually called a generator, or sometimes a decoder. Once such a latent space has been learned, you can sample points from it, and, by mapping them back to image space, generate images that have never been seen before (see figure 17.1) — the in-betweens of the training images.

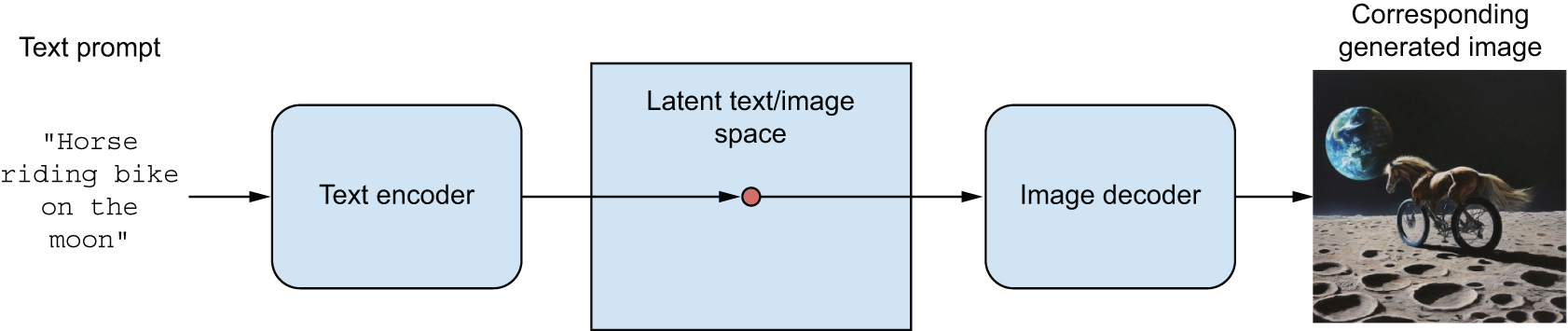

Further, text-conditioning makes it possible to map a space of prompts in natural language to the latent space (see figure 17.2), making it possible to do language-guided image generation — generating pictures that correspond to a text description. This category of models is called text-to-image models.

Interpolating between many training images in the latent space enables such models to generate infinite combinations of visual concepts, including many that no one had explicitly come up with before. A horse riding a bike on the moon? You got it. This makes image generation a powerful brush for creative-minded people to play with.

Of course, there are still challenges to overcome. Like with all deep learning models, the latent space doesn't encode a consistent model of the physical world, so you might occasionally see hands with extra fingers, incoherent lighting, or garbled objects. The coherence of generated images is still an area of active research. In the case of figure 17.2, despite having seen tens of thousands of images of people riding bikes, the model doesn't understand in a human sense what it means to ride a bike — concepts like pedaling, steering, or maintaining upright balance. That's why your bike-riding horse is unlikely to get depicted pedaling with its hind legs in a believable manner, the way a human artist would draw it.

There's a range of different strategies for learning such latent spaces of image representations, each with its own characteristics. The most common types of image generation models are

• Diffusion models
• Variational Auto-Encoders (VAEs)
• Generative Adversarial Networks (GANs)

While previous editions of this book covered GANs, they have gradually fallen out of fashion in recent years and have been all but replaced by diffusion models. In this edition, we'll cover both VAEs and diffusion models and we will skip GANs. In the models we'll build ourselves, we'll focus on unconditioned image generation — sampling images from a latent space without text conditioning. However, you will also learn how to use a pretrained text-to-image model and how to explore its latent space.

Variational autoencoders

VAEs, simultaneously discovered by Kingma and Welling in December 2013^[1] and Rezende, Mohamed, and Wierstra in January 2014,^[2] are a kind of generative model that's especially appropriate for the task of image editing via concept vectors. They're a kind of autoencoder — a type of network that aims to encode an input to a low-dimensional latent space and then decode it back — that mixes ideas from deep learning with Bayesian inference.

VAEs have been around for over a decade, but they remain relevant to this day and continue to be used in recent research. While VAEs will never be the first choice for generating high-fidelity images — where diffusion models excel — they remain an important tool in the deep learning toolbox, particularly when interpretability, control over the latent space, and data reconstruction capabilities are crucial. It's also your first contact with the concept of the autoencoder, which is useful to know about. VAEs beautifully illustrate the core idea behind this class of models.

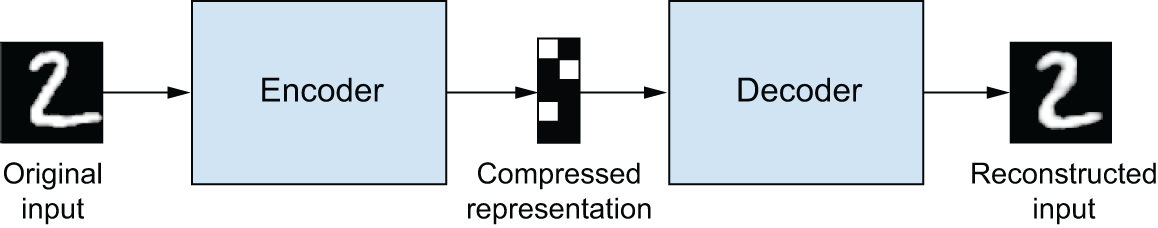

A classical image autoencoder takes an image, maps it to a latent vector space via an encoder module, and then decodes it back to an output with the same dimensions as the original image, via a decoder module (see figure 17.3). It's then trained by using as target data the same images as the input images, meaning the autoencoder learns to reconstruct the original inputs. By imposing various constraints on the code (the output of the encoder), you can get the autoencoder to learn more or less interesting latent representations of the data. Most commonly, you'll constrain the code to be low-dimensional and sparse (mostly zeros), in which case the encoder acts as a way to compress the input data into fewer bits of information.

In practice, such classical autoencoders don't lead to particularly useful or nicely structured latent spaces. They're not much good at compression either. For these reasons, they have largely fallen out of fashion. VAEs, however, augment autoencoders with a little bit of statistical magic that forces them to learn continuous, highly structured latent spaces. They have turned out to be a powerful tool for image generation.

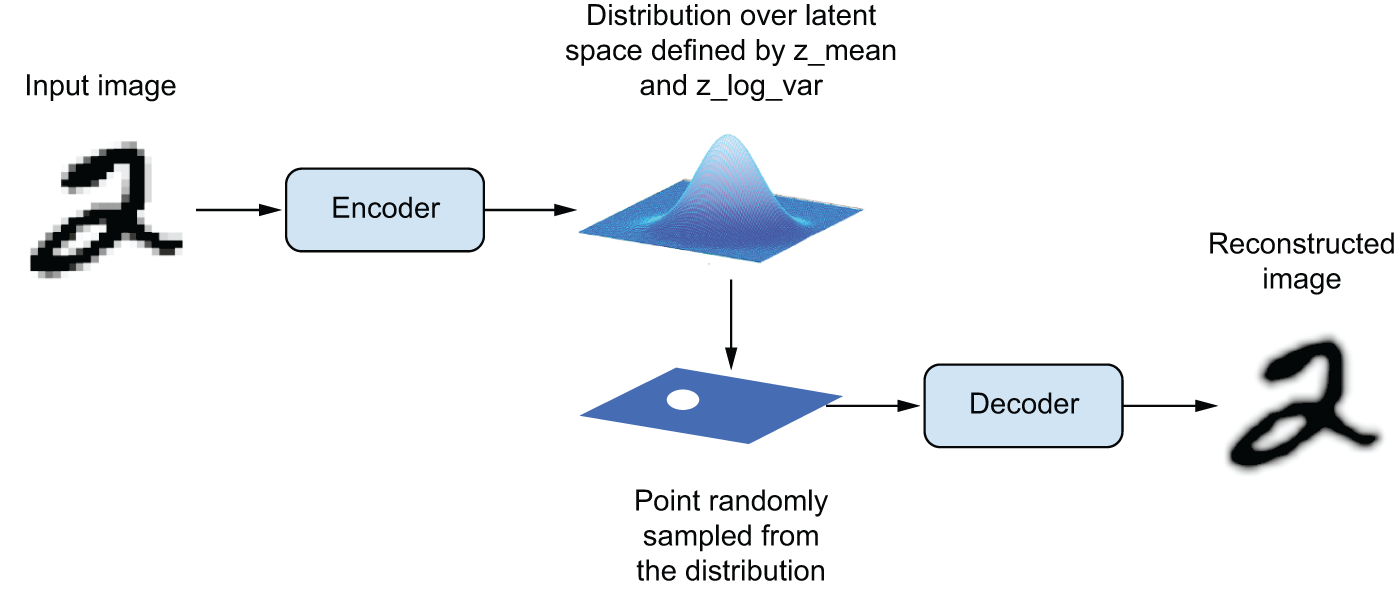

A VAE, instead of compressing its input image into a fixed code in the latent space, turns the image into the parameters of a statistical distribution: a mean and a variance. Essentially, this means we're assuming the input image has been generated by a statistical process, and that the randomness of this process should be taken into account during encoding and decoding. The VAE then uses the mean and variance parameters to randomly sample one element of the distribution, and decodes that element back to the original input (see figure 17.4). The stochasticity of this process improves robustness and forces the latent space to encode meaningful representations everywhere: every point sampled in the latent space is decoded to a valid output.

In technical terms, here's how a VAE works:

1. An encoder module turns the input sample input_img into two parameters in a latent space of representations, z_mean and z_log_variance.

2. You randomly sample a point z from the latent normal distribution that's assumed to generate the input image, via z = z_mean + exp(z_log_variance) * epsilon, where epsilon is a random tensor of small values.

3. A decoder module maps this point in the latent space back to the original input image.

Because epsilon is random, the process ensures that every point that's close to the latent location where you encoded input_img (z-mean) can be decoded to something similar to input_img, thus forcing the latent space to be continuously meaningful. Any two close points in the latent space will decode to highly similar images. Continuity, combined with the low dimensionality of the latent space, forces every direction in the latent space to encode a meaningful axis of variation of the data, making the latent space very structured and thus highly suitable to manipulation via concept vectors.

The parameters of a VAE are trained via two loss functions: a reconstruction loss that forces the decoded samples to match the initial inputs, and a regularization loss that helps learn well-rounded latent distributions and reduces overfitting to the training data. Schematically, the process looks like this:

# Encodes the input into a mean and variance parameter
z_mean, z_log_variance = encoder(input_img)
# Draws a latent point using a small random epsilon
z = z_mean + exp(z_log_variance) * epsilon
# Decodes z back to an image
reconstructed_img = decoder(z)
# Instantiates the autoencoder model, which maps an input image to its
# reconstruction
model = Model(input_img, reconstructed_img)

You can then train the model using the reconstruction loss and the regularization loss. For the regularization loss, we typically use an expression (the Kullback–Leibler divergence) meant to nudge the distribution of the encoder output toward a well-rounded normal distribution centered around 0. This provides the encoder with a sensible assumption about the structure of the latent space it's modeling.

Now let's see what implementing a VAE looks like in practice!

Implementing a VAE with Keras

We're going to be implementing a VAE that can generate MNIST digits. It's going to have three parts:

• An encoder network that turns a real image into a mean and a variance in the latent space
• A sampling layer that takes such a mean and variance and uses them to sample a random point from the latent space
• A decoder network that turns points from the latent space back into images

The following listing shows the encoder network you'll use, mapping images to the parameters of a probability distribution over the latent space. It's a simple convnet that maps the input image x to two vectors, z_mean and z_log_var. One important detail is that we use strides for downsampling feature maps, instead of max pooling. The last time we did this was in the image segmentation example of chapter 11. Recall that, in general, strides are preferable to max pooling for any model that cares about information location — that is, where stuff is in the image — and this one does, since it will have to produce an image encoding that can be used to reconstruct a valid image.

import keras
from keras import layers

# Dimensionality of the latent space: a 2D plane
latent_dim = 2

image_inputs = keras.Input(shape=(28, 28, 1))
x = layers.Conv2D(32, 3, activation="relu", strides=2, padding="same")(
    image_inputs
)
x = layers.Conv2D(64, 3, activation="relu", strides=2, padding="same")(x)
x = layers.Flatten()(x)
x = layers.Dense(16, activation="relu")(x)
# The input image ends up being encoded into these two parameters.
z_mean = layers.Dense(latent_dim, name="z_mean")(x)
z_log_var = layers.Dense(latent_dim, name="z_log_var")(x)
encoder = keras.Model(image_inputs, [z_mean, z_log_var], name="encoder")

Its summary looks like this:

>>> encoder.summary()
Model: "encoder"
┏━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━┓
┃ Layer (type)          ┃ Output Shape      ┃     Param # ┃ Connected to       ┃
┡━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━┩
│ input_layer           │ (None, 28, 28, 1) │           0 │ -                  │
│ (InputLayer)          │                   │             │                    │
├───────────────────────┼───────────────────┼─────────────┼────────────────────┤
│ conv2d (Conv2D)       │ (None, 14, 14,    │         320 │ input_layer[0][0]  │
│                       │ 32)               │             │                    │
├───────────────────────┼───────────────────┼─────────────┼────────────────────┤
│ conv2d_1 (Conv2D)     │ (None, 7, 7, 64)  │      18,496 │ conv2d[0][0]       │
├───────────────────────┼───────────────────┼─────────────┼────────────────────┤
│ flatten (Flatten)     │ (None, 3136)      │           0 │ conv2d_1[0][0]     │
├───────────────────────┼───────────────────┼─────────────┼────────────────────┤
│ dense (Dense)         │ (None, 16)        │      50,192 │ flatten[0][0]      │
├───────────────────────┼───────────────────┼─────────────┼────────────────────┤
│ z_mean (Dense)        │ (None, 2)         │          34 │ dense[0][0]        │
├───────────────────────┼───────────────────┼─────────────┼────────────────────┤
│ z_log_var (Dense)     │ (None, 2)         │          34 │ dense[0][0]        │
└───────────────────────┴───────────────────┴─────────────┴────────────────────┘
 Total params: 69,076 (269.83 KB)
 Trainable params: 69,076 (269.83 KB)
 Non-trainable params: 0 (0.00 B)

Next is the code for using z_mean and z_log_var, the parameters of the statistical distribution assumed to have produced input_img, to generate a latent space point z.

from keras import ops

class Sampler(keras.Layer):
    def __init__(self, **kwargs):
        super().__init__(**kwargs)
        # We need a seed generator to use functions from keras.random
        # in call().
        self.seed_generator = keras.random.SeedGenerator()
        self.built = True

    def call(self, z_mean, z_log_var):
        batch_size = ops.shape(z_mean)[0]
        z_size = ops.shape(z_mean)[1]
        epsilon = keras.random.normal(
            # Draws a batch of random normal vectors
            (batch_size, z_size), seed=self.seed_generator
        )
        # Applies the VAE sampling formula
        return z_mean + ops.exp(0.5 * z_log_var) * epsilon

The following listing shows the decoder implementation. We reshape the vector z to the dimensions of an image and then use a few convolution layers to obtain a final image output that has the same dimensions as the original input_img.

# Input where we'll feed z
latent_inputs = keras.Input(shape=(latent_dim,))
# Produces the same number of coefficients we had at the level of the
# Flatten layer in the encoder
x = layers.Dense(7 * 7 * 64, activation="relu")(latent_inputs)
# Reverts the Flatten layer of the encoder
x = layers.Reshape((7, 7, 64))(x)
# Reverts the Conv2D layers of the encoder
x = layers.Conv2DTranspose(64, 3, activation="relu", strides=2, padding="same")(
    x
)
x = layers.Conv2DTranspose(32, 3, activation="relu", strides=2, padding="same")(
    x
)
# The output ends up with shape (28, 28, 1).
decoder_outputs = layers.Conv2D(1, 3, activation="sigmoid", padding="same")(x)
decoder = keras.Model(latent_inputs, decoder_outputs, name="decoder")

Its summary looks like this:

>>> decoder.summary()
Model: "decoder"
┏━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━┓
┃ Layer (type)                      ┃ Output Shape             ┃       Param # ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━┩
│ input_layer_1 (InputLayer)        │ (None, 2)                │             0 │
├───────────────────────────────────┼──────────────────────────┼───────────────┤
│ dense_1 (Dense)                   │ (None, 3136)             │         9,408 │
├───────────────────────────────────┼──────────────────────────┼───────────────┤
│ reshape (Reshape)                 │ (None, 7, 7, 64)         │             0 │
├───────────────────────────────────┼──────────────────────────┼───────────────┤
│ conv2d_transpose                  │ (None, 14, 14, 64)       │        36,928 │
│ (Conv2DTranspose)                 │                          │               │
├───────────────────────────────────┼──────────────────────────┼───────────────┤
│ conv2d_transpose_1                │ (None, 28, 28, 32)       │        18,464 │
│ (Conv2DTranspose)                 │                          │               │
├───────────────────────────────────┼──────────────────────────┼───────────────┤
│ conv2d_2 (Conv2D)                 │ (None, 28, 28, 1)        │           289 │
└───────────────────────────────────┴──────────────────────────┴───────────────┘
 Total params: 65,089 (254.25 KB)
 Trainable params: 65,089 (254.25 KB)
 Non-trainable params: 0 (0.00 B)

Now, let's create the VAE model itself. This is your first example of a model that isn't doing supervised learning (an autencoder is an example of self-supervised learning because it uses its inputs as targets). Whenever you depart from classic supervised learning, it's common to subclass the Model class and implement a custom train_step() to specify the new training logic, a workflow you've learned about in chapter 7. We could easily do that here, but a downside of this technique is that the train_step() contents must be backend-specific — you'd use GradientTape with TensorFlow, you'd use loss.backward() with PyTorch, and so on. A simpler way to customize your training logic is to just implement the compute_loss() method instead and keep the default train_step(). compute_loss() is the key bit of differentiable logic called by the built-in train_step(). Since it doesn't involve direct manipulation of gradients, it's easy to keep it backend-agnostic.

Its signature is as follows:

compute_loss(x, y, y_pred, sample_weight=None, training=True)

where x is the model's input; y is the model's target (in our case, it is None since the dataset we use only has inputs, no targets); and y_pred is the output of call() — the model's predictions. In any supervised training workflow, you'd compute the loss based on y and y_pred. In our case, since y is None and y_pred contains the latent parameters, we'll compute the loss using x (the original input) and the reconstruction derived from y_pred.

The method must return a scalar, the loss value to be minimized. You can also use compute_loss() to update the state of your metrics, which is something we'll want to do in our case.

Now, let's write our VAE with a custom compute_loss() method. It works with all backends with no code changes!

class VAE(keras.Model):
    def __init__(self, encoder, decoder, **kwargs):
        super().__init__(**kwargs)
        self.encoder = encoder
        self.decoder = decoder
        self.sampler = Sampler()
        # We'll use these metrics to keep track of the loss averages
        # over each epoch.
        self.reconstruction_loss_tracker = keras.metrics.Mean(
            name="reconstruction_loss"
        )
        self.kl_loss_tracker = keras.metrics.Mean(name="kl_loss")

    def call(self, inputs):
        return self.encoder(inputs)

    def compute_loss(self, x, y, y_pred, sample_weight=None, training=True):
        # Argument x is the model's input.
        original = x
        # Argument y_pred is the output of call().
        z_mean, z_log_var = y_pred
        # This is our reconstructed image.
        reconstruction = self.decoder(self.sampler(z_mean, z_log_var))

        # We sum the reconstruction loss over the spatial dimensions
        # (axes 1 and 2) and take its mean over the batch dimension.
        reconstruction_loss = ops.mean(
            ops.sum(
                keras.losses.binary_crossentropy(x, reconstruction), axis=(1, 2)
            )
        )
        # Adds the regularization term (Kullback–Leibler divergence)
        kl_loss = -0.5 * (
            1 + z_log_var - ops.square(z_mean) - ops.exp(z_log_var)
        )
        total_loss = reconstruction_loss + ops.mean(kl_loss)

        # Updates the state of our loss tracking metrics
        self.reconstruction_loss_tracker.update_state(reconstruction_loss)
        self.kl_loss_tracker.update_state(kl_loss)
        return total_loss

Finally, you're ready to instantiate and train the model on MNIST digits. Because compute_loss() already takes care of the loss, you don't specify an external loss at compile time (loss=None), which, in turn, means you won't pass target data during training (as you can see, you only pass x_train to the model in fit).

import numpy as np

(x_train, _), (x_test, _) = keras.datasets.mnist.load_data()
# We train on all MNIST digits, so we concatenate the training and test
# samples.
mnist_digits = np.concatenate([x_train, x_test], axis=0)
mnist_digits = np.expand_dims(mnist_digits, -1).astype("float32") / 255

vae = VAE(encoder, decoder)
# We don't pass a loss argument in compile(), since the loss is already
# part of the train_step().
vae.compile(optimizer=keras.optimizers.Adam())
# We don't pass targets in fit(), since train_step() doesn't expect
# any.
vae.fit(mnist_digits, epochs=30, batch_size=128)

Once the model is trained, you can use the decoder network to turn arbitrary latent space vectors into images.

import matplotlib.pyplot as plt

# We'll display a grid of 30 × 30 digits (900 digits total).
n = 30
digit_size = 28
figure = np.zeros((digit_size * n, digit_size * n))

# Samples points linearly on a 2D grid
grid_x = np.linspace(-1, 1, n)
grid_y = np.linspace(-1, 1, n)[::-1]

# Iterates over grid locations
for i, yi in enumerate(grid_y):
    for j, xi in enumerate(grid_x):
        # For each location, samples a digit and adds it to our figure
        z_sample = np.array([[xi, yi]])
        x_decoded = vae.decoder.predict(z_sample)
        digit = x_decoded[0].reshape(digit_size, digit_size)
        figure[
            i * digit_size : (i + 1) * digit_size,
            j * digit_size : (j + 1) * digit_size,
        ] = digit

plt.figure(figsize=(15, 15))
start_range = digit_size // 2
end_range = n * digit_size + start_range
pixel_range = np.arange(start_range, end_range, digit_size)
sample_range_x = np.round(grid_x, 1)
sample_range_y = np.round(grid_y, 1)
plt.xticks(pixel_range, sample_range_x)
plt.yticks(pixel_range, sample_range_y)
plt.xlabel("z[0]")
plt.ylabel("z[1]")
plt.axis("off")
plt.imshow(figure, cmap="Greys_r")

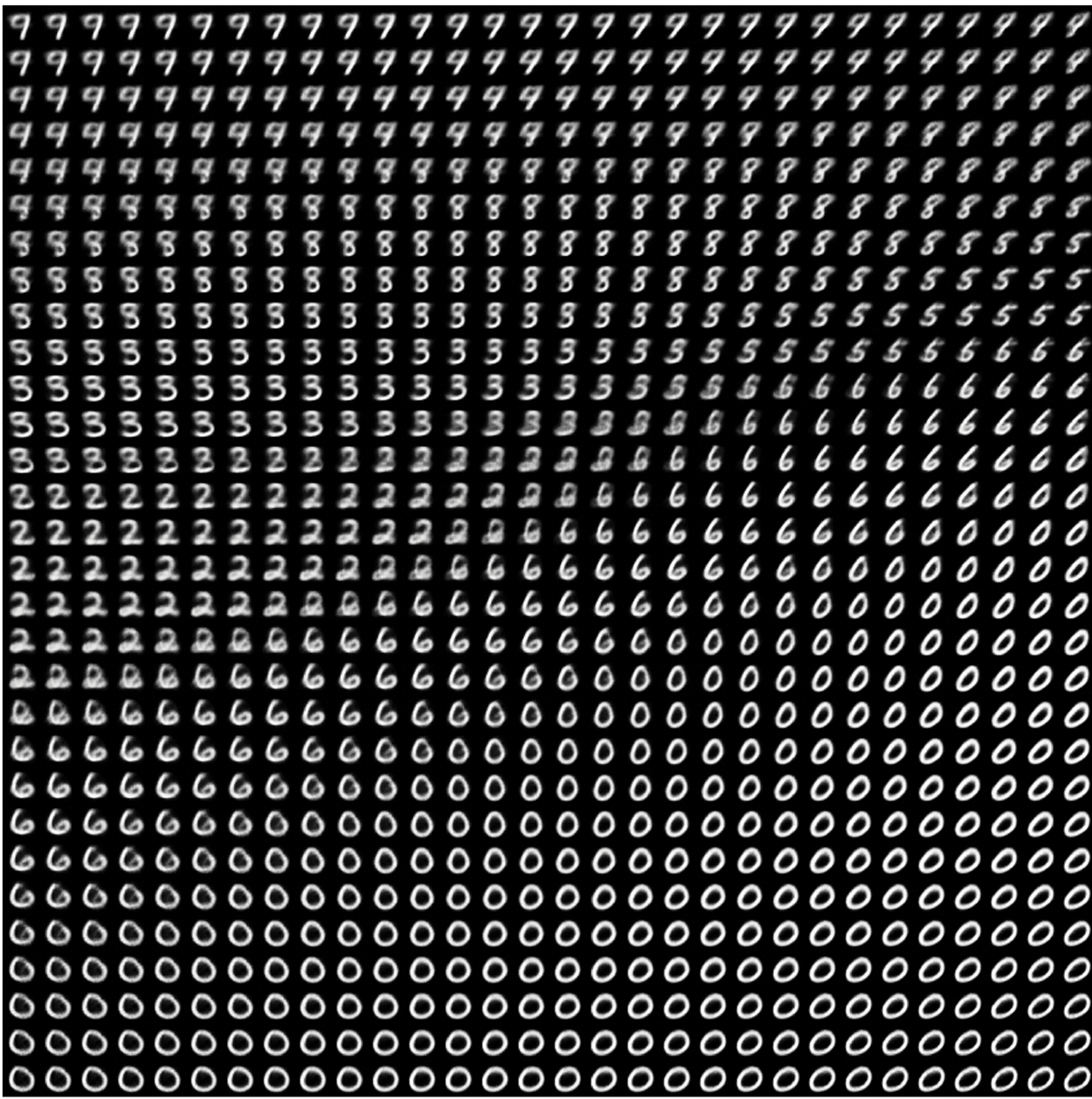

The grid of sampled digits (see figure 17.5) shows a completely continuous distribution of the different digit classes, with one digit morphing into another as you follow a path through latent space. Specific directions in this space have a meaning: for example, there's a direction for "four-ness," "one-ness," and so on.

In the next section, we'll cover in detail another major tool for generating images: diffusion models, the architecture behind nearly all commercial image generation services today.

Diffusion models

A long-standing application of autoencoders has been denoising: feeding into a model an input that features a small amount of noise — for instance, a low-quality JPEG image — and getting back a cleaned-up version of the same input. This is the one task that autoencoders excel at. In the late 2010s, this idea gave rise to very successful image super-resolution models, capable of taking in low-resolution, potentially noisy images and outputting high-quality, high-resolution versions of them (see figure 17.6). Such models have been shipped as part of every major smartphone camera app for the past few years.

Of course, these models aren't magically recovering lost details hidden in the input, like in the "enhance" scene from Blade Runner (1982). Rather, they're making educated guesses about what the image should look like — they're hallucinating a cleaned-up, higher-resolution version of what you give them. This can potentially lead to funny mishaps. For instance, with some AI-enhanced cameras, you can take a picture of something that looks vaguely moon-like (such as a printout of a severely blurred moon image), and you will get in your camera roll a crisp picture of the moon's craters. A lot of detail that simply wasn't present in the printout gets straight-up hallucinated by the camera, because the super-resolution model it uses is overfitted to moon photography images. So, unlike Rick Deckard, definitely don't use this technique for forensics!

Early successes in image denoising led researchers to an arresting idea: since you can use an autoencoder to remove a small amount of noise from an image, surely it would be possible to repeat the process multiple times in a loop to remove a large amount of noise. Ultimately, could you denoise an image made out of pure noise?

As it turns out, yes, you can. By doing this, you can effectively hallucinate brand new images out of nothing, like in figure 17.7. This is the key insight behind diffusion models, which should more accurately be called reverse diffusion models, since "diffusion" refers to the process of gradually adding noise to an image until it disperses into nothing.

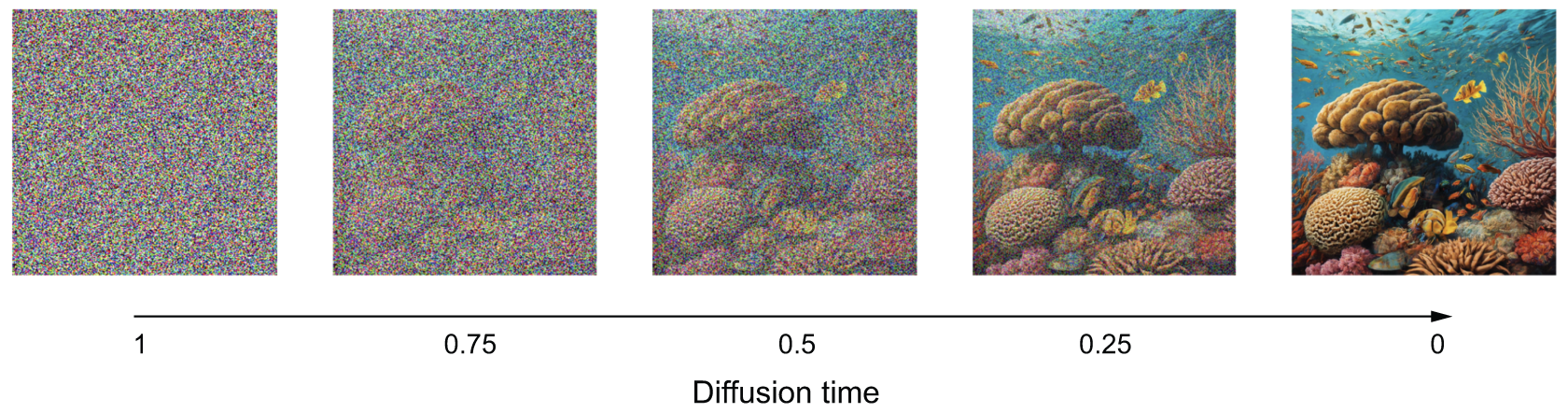

A diffusion model is essentially a denoising autoencoder in a loop, capable of turning pure noise into sharp, realistic imagery. You may know this poetic quote from Michelangelo, "Every block of stone has a statue inside it and it is the task of the sculptor to discover it" — well, every square of white noise has an image inside it, and it is the task of the diffusion model to discover it.

Now, let's build one with Keras.

The Oxford Flowers dataset

The dataset we're going to use is the Oxford Flowers dataset (https://www.robots.ox.ac.uk/~vgg/data/flowers/102/), a collection of 8,189 images of flowers that belong to 102 different species.

Let's get the dataset archive and extract it:

import os

fpath = keras.utils.get_file(
    origin="https://www.robots.ox.ac.uk/~vgg/data/flowers/102/102flowers.tgz",
    extract=True,
)

fpath is now the local path to the extracted directory. The images are contained in the jpg subdirectory there. Let's turn them into an iterable dataset using image_dataset_from_directory().

We need to resize our images to a fixed size, but we don't want to distort their aspect ratio since this would negatively affect the quality of our generated images, so we use the crop_to_aspect_ratio option to extract maximally large undistorted crops of the right size (128 x 128):

batch_size = 32
image_size = 128
images_dir = os.path.join(fpath, "jpg")
dataset = keras.utils.image_dataset_from_directory(
    images_dir,
    # We won't need the labels, just the images.
    labels=None,
    image_size=(image_size, image_size),
    # Crops images when resizing them to preserve their aspect ratio
    crop_to_aspect_ratio=True,
)
dataset = dataset.rebatch(
    # We'd like all batches to have the same size, so we drop the last
    # (irregular) batch.
    batch_size,
    drop_remainder=True,
)

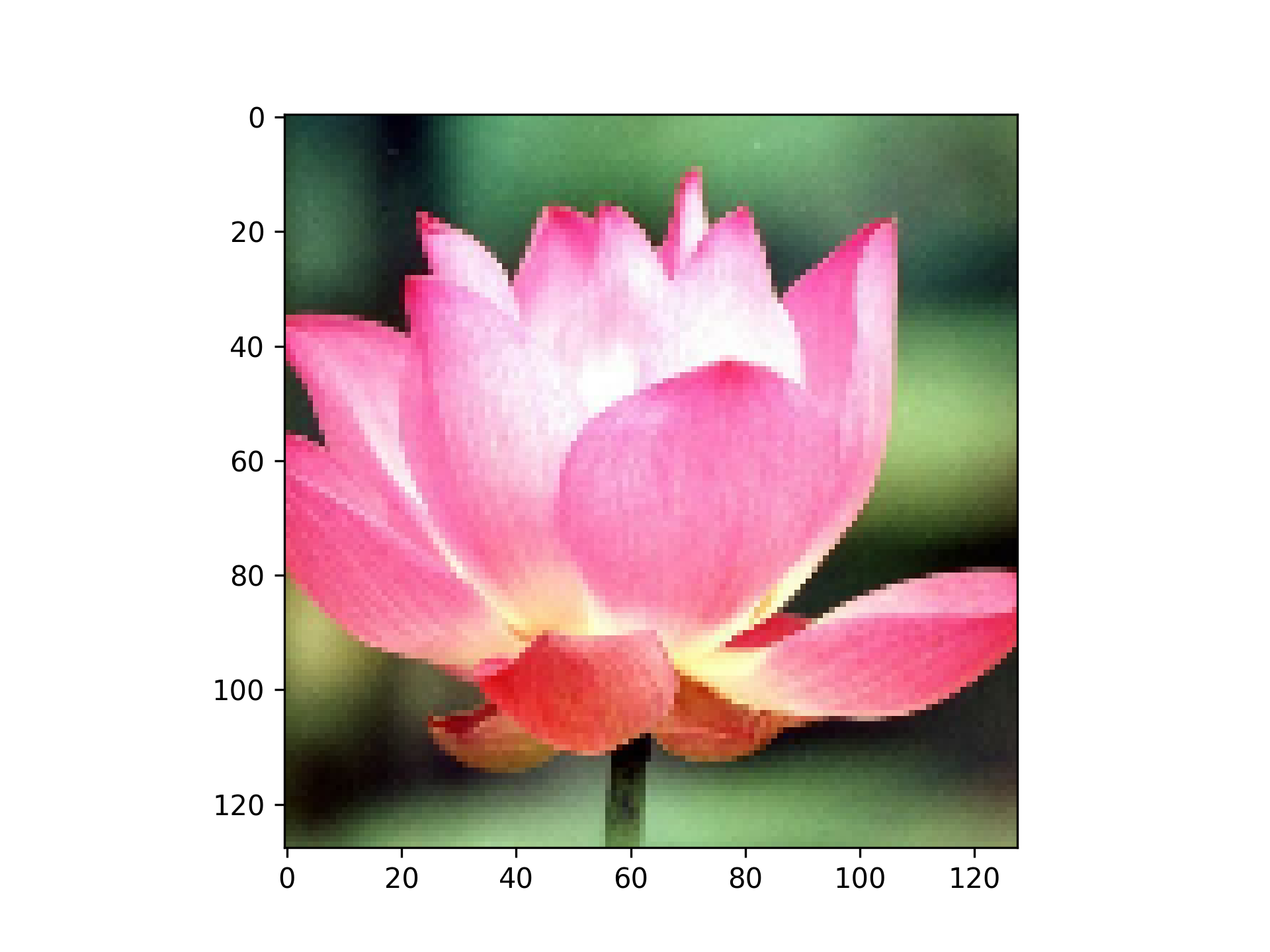

Here's an example image (figure 17.8):

from matplotlib import pyplot as plt

for batch in dataset:
    img = batch.numpy()[0]
    break
plt.imshow(img.astype("uint8"))

A U-Net denoising autoencoder

The same denoising model gets reused across each iteration of the diffusion denoising process, erasing a little bit of noise each time. To make the job of the model easier, we tell it how much noise it is supposed to extract for a given input image — that's the noise_rates input. Rather than outputting a denoised image, we make our model output a predicted noise mask, which we can subtract from the input to denoise it.

For our denoising model, we're going to use a U-Net — a kind of convnet originally developed for image segmentation. It looks like figure 17.9.

This architecture features three stages:

1. A downsampling stage, each made of several blocks of convolution layers, where the inputs get downsampled from their original 128 x 128 size down to a much smaller size (in our case, 16 x 16).
2. A middle stage where the feature map has a constant size.
3. An upsampling stage, where the feature map get upsampled back to 128 x 128.

There is a 1:1 mapping between the blocks of the downsampling and upsampling stages: each upsampling block is the inverse of a downsampling block. Importantly, the model features concatenative residual connections going from each downsampling block to the corresponding upsampling block. These connections help avoid loss of image detail information across the successive downsampling and upsampling operations.

Let's assemble the model using the Functional API:

# Utility function to apply a block of layers with a residual
# connection
def residual_block(x, width):
    input_width = x.shape[3]
    if input_width == width:
        residual = x
    else:
        residual = layers.Conv2D(width, 1)(x)
    x = layers.BatchNormalization(center=False, scale=False)(x)
    x = layers.Conv2D(width, 3, padding="same", activation="swish")(x)
    x = layers.Conv2D(width, 3, padding="same")(x)
    x = x + residual
    return x

def get_model(image_size, widths, block_depth):
    noisy_images = keras.Input(shape=(image_size, image_size, 3))
    noise_rates = keras.Input(shape=(1, 1, 1))

    x = layers.Conv2D(widths[0], 1)(noisy_images)
    n = layers.UpSampling2D(image_size, interpolation="nearest")(noise_rates)
    x = layers.Concatenate()([x, n])

    skips = []
    # Dowsampling stage
    for width in widths[:-1]:
        for _ in range(block_depth):
            x = residual_block(x, width)
            skips.append(x)
        x = layers.AveragePooling2D(pool_size=2)(x)

    # Middle stage
    for _ in range(block_depth):
        x = residual_block(x, widths[-1])

    # Upsampling stage
    for width in reversed(widths[:-1]):
        x = layers.UpSampling2D(size=2, interpolation="bilinear")(x)
        for _ in range(block_depth):
            x = layers.Concatenate()([x, skips.pop()])
            x = residual_block(x, width)

    # We set the kernel initializer for the last layer to "zeros",
    # making the model predict only zeros after initialization (that
    # is, our default assumption before training is "no noise").
    pred_noise_masks = layers.Conv2D(3, 1, kernel_initializer="zeros")(x)

    # Creates the functional model
    return keras.Model([noisy_images, noise_rates], pred_noise_masks)

You would instantiate the model with something like get_model(image_size=128, widths=[32, 64, 96, 128], block_depth=2). The widths argument is a list containing the Conv2D layer sizes for each successive downsampling or upsampling stage. We typically want the layers to get bigger as we downsample the inputs (going from 32 to 128 units here) and then get smaller as as upsample (from 32 back to 128 here).

The concepts of diffusion time and diffusion schedule

The diffusion process is a series of steps in which we apply our denoising autoencoder to erase a small amount of noise from an image, starting with a pure-noise image, and ending with a pure-signal image. The index of the current step in the loop is called the diffusion time (see figure 17.7). In our case, we'll use a continuous value between 1 and 0 for this index — a value of 1 indicates the start of the process, where the amount of noise is maximal and the amount of signal is minimal, and a value of 0 indicates the end of the process, where the image is almost all signal and no noise.

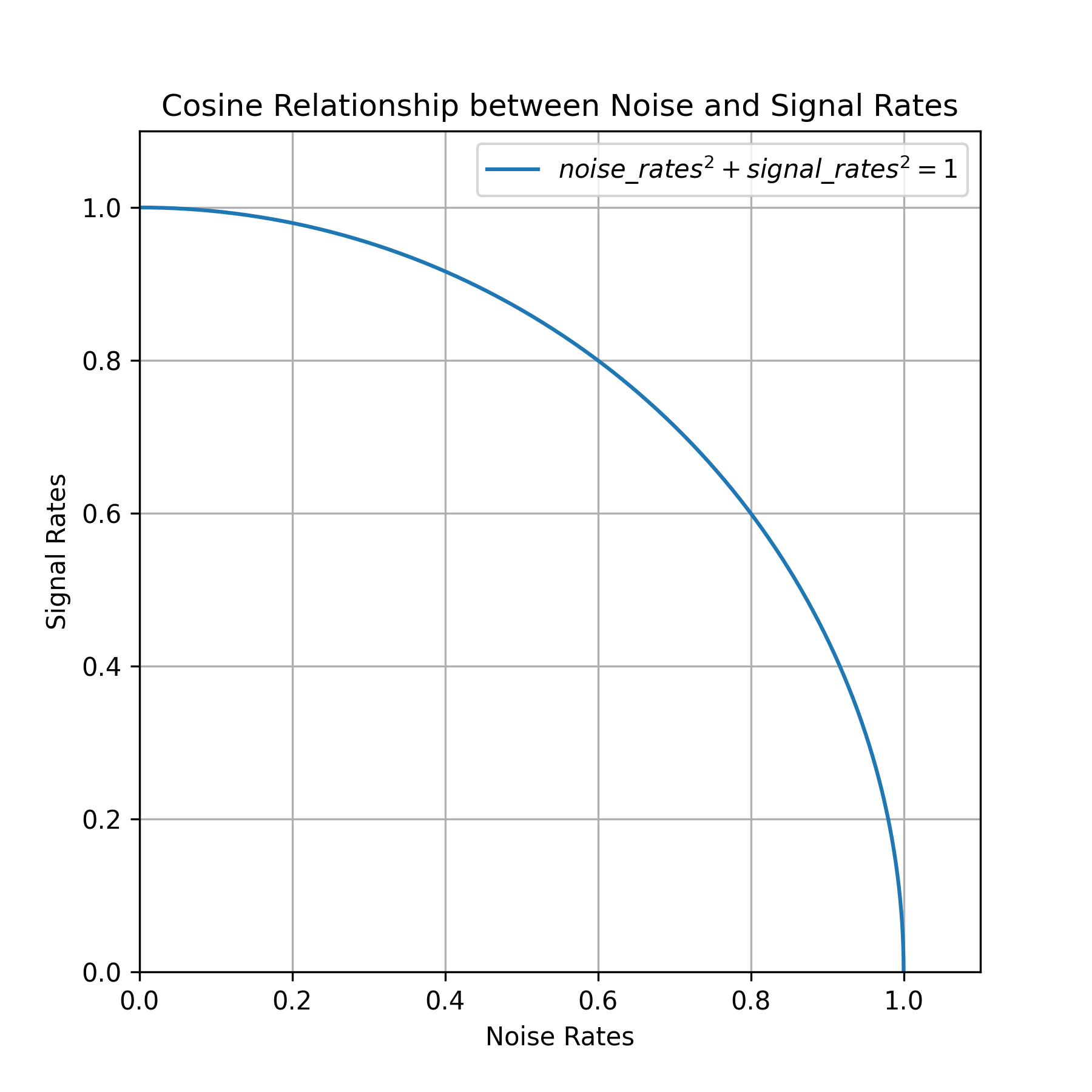

The relationship between the current diffusion time and the amount of noise and signal present in the image is called the diffusion schedule. In our experiment, we're going to use a cosine schedule (see listing 17.7) to smoothly transition from a high signal rate (low noise) at the beginning to a low signal rate (high noise) at the end of the diffusion process.

def diffusion_schedule(
    diffusion_times,
    min_signal_rate=0.02,
    max_signal_rate=0.95,
):
    start_angle = ops.cast(ops.arccos(max_signal_rate), "float32")
    end_angle = ops.cast(ops.arccos(min_signal_rate), "float32")
    diffusion_angles = start_angle + diffusion_times * (end_angle - start_angle)
    signal_rates = ops.cos(diffusion_angles)
    noise_rates = ops.sin(diffusion_angles)
    return noise_rates, signal_rates

This diffusion_schedule() function takes as input a diffusion_times tensor, which represent the progression of the diffusion process and returns the corresponding noise_rates and signal_rates tensors. These rates will be used to guide the denoising process. The logic behind using a cosine schedule is to maintain the relationship noise_rates ** 2 + signal_rates ** 2 == 1 (see figure 17.10).

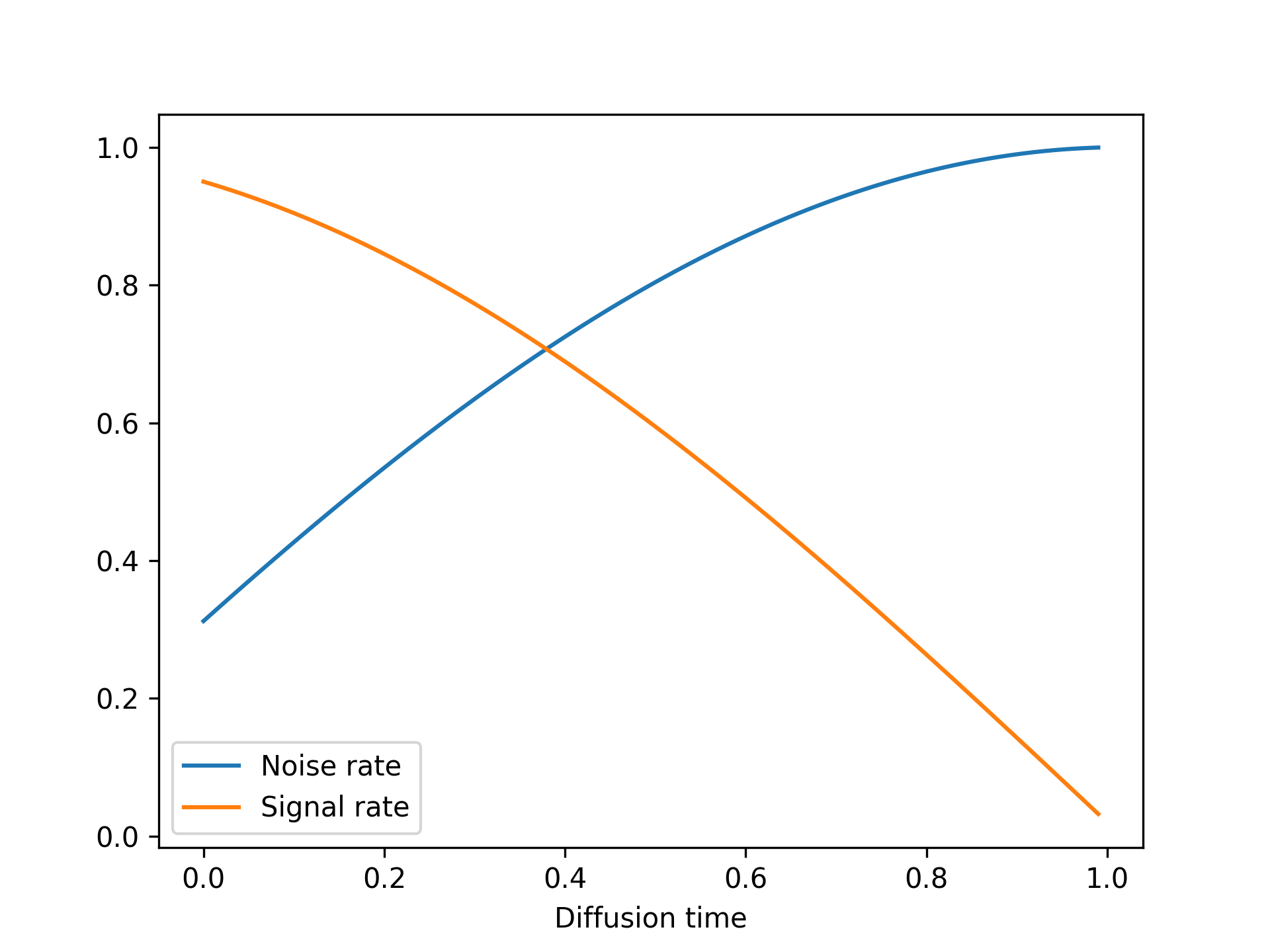

Let's plot how this function maps diffusion times (between 0 and 1) to specific noise rates and signal rates (see figure 17.11):

diffusion_times = ops.arange(0.0, 1.0, 0.01)
noise_rates, signal_rates = diffusion_schedule(diffusion_times)

# These lines are only necessary if you're using PyTorch, in which case
# tensor conversion to NumPy is no longer trivial.
diffusion_times = ops.convert_to_numpy(diffusion_times)
noise_rates = ops.convert_to_numpy(noise_rates)
signal_rates = ops.convert_to_numpy(signal_rates)

plt.plot(diffusion_times, noise_rates, label="Noise rate")
plt.plot(diffusion_times, signal_rates, label="Signal rate")

plt.xlabel("Diffusion time")
plt.legend()

The training process

Let's create a DiffusionModel class to implement the training procedure. It's going to have our denoising autoencoder as one of its attributes. We're also going to need a couple more things:

• A loss function — We'll use mean absolute error as our loss, that is to say mean(abs(real_noise_mask - predicted_noise_mask))
• An image normalization layer — The noise we'll add to the images will have unit variance and zero mean, so we'd like our images to be normalized as such too, for the value range of the noise to match the value range of the images.

Let's start by writing the model constructor:

class DiffusionModel(keras.Model):
    def __init__(self, image_size, widths, block_depth, **kwargs):
        super().__init__(**kwargs)
        self.image_size = image_size
        self.denoising_model = get_model(image_size, widths, block_depth)
        self.seed_generator = keras.random.SeedGenerator()
        # Our loss function
        self.loss = keras.losses.MeanAbsoluteError()
        # We'll use this to normalize input images.
        self.normalizer = keras.layers.Normalization()

The first method we're going to need is the denoising method. It simply calls the denoising model to retrieve a predicted noise mask, and it uses it to reconstruct a denoised image:

    def denoise(self, noisy_images, noise_rates, signal_rates):
        # Calls the denoising model
        pred_noise_masks = self.denoising_model([noisy_images, noise_rates])
        # Reconstructs the predicted clean image
        pred_images = (
            noisy_images - noise_rates * pred_noise_masks
        ) / signal_rates
        return pred_images, pred_noise_masks

Next, here's the training logic. This is the most important part! Like in the VAE example, we're going to implement a custom compute_loss() method to keep our model backend-agnostic. Of course, if you are set on using one specific backend, you could also write a custom train_step() with the exact same logic in it, plus the backend-specific logic for gradient computation and weight updates.

Since compute_loss() receives as input the output of call(), we're going to put the denoising forward pass in call(). Our call() takes a batch of clean input images and applies the following steps:

1. Normalizes the images
2. Samples random diffusion times (the denoising model needs to be trained on the full spectrum of diffusion times)
3. Computes corresponding noise rates and signal rates (using the diffusion schedule)
4. Adds random noise to the clean images (based on the computed noise rates and signal rates)
5. Denoises the images

It returns

• The predicted denoised images
• The predicted noise masks
• The actual noise masks it applied

These last two quantities are then used in compute_loss() to compute the loss of the model on the noise mask prediction task:

    def call(self, images):
        images = self.normalizer(images)
        # Samples random noise masks
        noise_masks = keras.random.normal(
            (batch_size, self.image_size, self.image_size, 3),
            seed=self.seed_generator,
        )
        # Samples random diffusion times
        diffusion_times = keras.random.uniform(
            (batch_size, 1, 1, 1),
            minval=0.0,
            maxval=1.0,
            seed=self.seed_generator,
        )
        noise_rates, signal_rates = diffusion_schedule(diffusion_times)
        # Adds noise to the images
        noisy_images = signal_rates * images + noise_rates * noise_masks
        # Denoises them
        pred_images, pred_noise_masks = self.denoise(
            noisy_images, noise_rates, signal_rates
        )
        return pred_images, pred_noise_masks, noise_masks

    def compute_loss(self, x, y, y_pred, sample_weight=None, training=True):
        _, pred_noise_masks, noise_masks = y_pred
        return self.loss(noise_masks, pred_noise_masks)

The generation process

Finally, let's implement the image generation process. We start from pure random noise, and we repeatedly apply the denoise() method until we get high-signal, low-noise images.

    def generate(self, num_images, diffusion_steps):
        noisy_images = keras.random.normal(
            # Starts from pure noise
            (num_images, self.image_size, self.image_size, 3),
            seed=self.seed_generator,
        )
        step_size = 1.0 / diffusion_steps
        for step in range(diffusion_steps):
            # Computes appropriate noise rates and signal rates
            diffusion_times = ops.ones((num_images, 1, 1, 1)) - step * step_size
            noise_rates, signal_rates = diffusion_schedule(diffusion_times)
            # Calls denoising model
            pred_images, pred_noises = self.denoise(
                noisy_images, noise_rates, signal_rates
            )
            # Prepares noisy images for the next iteration
            next_diffusion_times = diffusion_times - step_size
            next_noise_rates, next_signal_rates = diffusion_schedule(
                next_diffusion_times
            )
            noisy_images = (
                next_signal_rates * pred_images + next_noise_rates * pred_noises
            )
        # Denormalizes images so their values fit between 0 and 255
        images = (
            self.normalizer.mean + pred_images * self.normalizer.variance**0.5
        )
        return ops.clip(images, 0.0, 255.0)

Visualizing results with a custom callback

We don't have a proper metric to judge the quality of our generated images, so we're going to want to visualize the generated images yourself over the course of training to judge if your model is getting somewhere. An easy way to do this is with a custom callback. The following callback uses the generate() method at the end of each epoch to display a 3 x 6 grid of generated images:

class VisualizationCallback(keras.callbacks.Callback):
    def __init__(self, diffusion_steps=20, num_rows=3, num_cols=6):
        self.diffusion_steps = diffusion_steps
        self.num_rows = num_rows
        self.num_cols = num_cols

    def on_epoch_end(self, epoch=None, logs=None):
        generated_images = self.model.generate(
            num_images=self.num_rows * self.num_cols,
            diffusion_steps=self.diffusion_steps,
        )

        plt.figure(figsize=(self.num_cols * 2.0, self.num_rows * 2.0))
        for row in range(self.num_rows):
            for col in range(self.num_cols):
                i = row * self.num_cols + col
                plt.subplot(self.num_rows, self.num_cols, i + 1)
                img = ops.convert_to_numpy(generated_images[i]).astype("uint8")
                plt.imshow(img)
                plt.axis("off")
        plt.tight_layout()
        plt.show()
        plt.close()

It's go time!

It's finally time to train our diffusion model on the Oxford Flowers dataset. Let's instantiate the model:

model = DiffusionModel(image_size, widths=[32, 64, 96, 128], block_depth=2)
# Computes the mean and variance necessary to perform normalization —
# don't forget it!
model.normalizer.adapt(dataset)

We're going to use AdamW as our optimizer, with a few neat options enabled to help stabilize training and improve the quality of the generated images:

• Learning rate decay — We gradually reduce the learning rate during training, via an InverseTimeDecay schedule.
• Exponential moving average of model weights — Also known as Polyak averaging. This technique maintains a running average of the model's weights during training. Every 100 batches, we overwrite the model's weights with this averaged set of weights. This helps stabilize the model's representations in scenarios where the loss landscape is noisy.

The code is

model.compile(
    optimizer=keras.optimizers.AdamW(
        # Configures the learning rate decay schedule
        learning_rate=keras.optimizers.schedules.InverseTimeDecay(
            initial_learning_rate=1e-3,
            decay_steps=1000,
            decay_rate=0.1,
        ),
        # Turns on Polyak averaging
        use_ema=True,
        # Configures how often to overwrite the model's weights with
        # their exponential moving average
        ema_overwrite_frequency=100,
    ),
)

Let's fit the model. We'll use our VisualizationCallback callback to plot examples of generated images after each epoch, and we'll save the model's weights with the ModelCheckpoint callback:

model.fit(
    dataset,
    epochs=100,
    callbacks=[
        VisualizationCallback(),
        keras.callbacks.ModelCheckpoint(
            filepath="diffusion_model.weights.h5",
            save_weights_only=True,
            save_best_only=True,
        ),
    ],
)

If you're running on Colab, you might run into the error, "Buffered data was truncated after reaching the output size limit." This happens because the logs of fit() include images, which take up a lot of space, wheras the output allowed for a single notebook cell is limited. To get around the problem, you can simply chain five model.fit(..., epochs=20) calls, in five successive cells. This is equivalent to a single fit(..., epochs=100) call.

After 100 epochs (which takes about 90 minutes on a T4, the free Colab GPU), we get pretty generative flowers like these (see figure 17.12).

You can keep training for even longer and get increasingly realistic results.

So that's how image generation with diffusion works! Now, the next step to unlock their potential is to add text conditioning, which would result in a text-to-image model, capable of producing images that match a given text caption.

Text-to-image models

We can use the same basic diffusion process to create a model that maps text input to image output. To do this we need to take a pretrained text encoder (think a transformer encoder like RoBERTa from chapter 15) that can map text to vectors in a continuous embedding space. Then we can train a diffusion model on (prompt, image) pairs, where each prompt is a short, textual description of the input image.

We can handle the image input in the same way as we did previously, mapping noisy input to a denoised output that progressively approaches our input image. Critically, we can extend this setup by also passing the embedded text prompt to the denoising model. So rather than our denoising model simply taking in a noisy_images input, our model will take two inputs: noisy_images and text_embeddings. This gives a leg up on the flower denoiser we trained previously. Instead of learning to remove noise from an image without any additional information, the model gets to use a textual representation of the final image to help guide the denoising process.

After training is when things get a bit more fun. Because we have trained a model that can map pure noise to images conditioned on a vector representation of some text, we can now pass in pure noise and a never-before-seen prompt and denoise it into an image for our prompt.

Let's try this out. We won't actually train one of these models from scratch in this book — you have all the ingredients you need, but it's quite expensive and time consuming to train a text-to-image diffusion model that works well. Instead, we will play with a popular pretrained model in KerasHub called Stable Diffusion (figure 17.13). Stable Diffusion is made by a company named Stability AI that specializes in making open models for image and video generation. We can use the third version of their image generation model in KerasHub with just a couple lines of code:

import keras_hub

height, width = 512, 512
task = keras_hub.models.TextToImage.from_preset(
    "stable_diffusion_3_medium",
    image_shape=(height, width, 3),
    # A trick to keep memory usage down. More details in chapter 18.
    dtype="float16",
)
prompt = "A NASA astraunaut riding an origami elephant in New York City"
task.generate(prompt)

Like the CausalLM task we covered last chapter, the TextToImage task is a high-level class for performing image generation conditioned on text input. It wraps tokenization and the diffusion process into a high-level generate call.

The Stable Diffusion model actually adds a second "negative prompt" to its model, which can be used to steer the diffusion process away from certain text inputs. There's nothing magic here. To add a negative prompt, you could simply train a model on triplets: (image, positive_prompt, negative_prompt), where the positive prompt is a description of the image, and the negative prompt is a series of words that do not describe the image. By feeding the positive and negative text embedding to the denoiser, the denoiser will learn to steer the noise toward images that match the positive prompt and away from images that match the negative prompt (figure 17.14). Let's try removing the color blue from our input:

task.generate(
    {
        "prompts": prompt,
        "negative_prompts": "blue color",
    }
)

Like the generate() method for text models we used last chapter, we have a few additional parameters we can pass to control the generation process. Let's try passing a variable number of diffusion steps to our model to see the denoising process in action (figure 17.15):

import numpy as np
from PIL import Image

def display(images):
    return Image.fromarray(np.concatenate(images, axis=1))

display([task.generate(prompt, num_steps=x) for x in [5, 10, 15, 20, 25]])

Exploring the latent space of a text-to-image model

There is probably no better way to see the interpolative nature of deep neural networks than text diffusion models. The text encoder used by our model will learn a smooth, low-dimensional manifold to represent our input prompts. It's continuous, meaning we have learned a space where we can walk from the text representation of one prompt to another, and each intermediate point will have semantic meaning. We can couple that with our diffusion process to morph between two images by simply describing each end state with a text prompt.

Before we can do this, we will need to break up our high-level generate() function into its constituent parts. Let's try that out.

from keras import random

def get_text_embeddings(prompt):
    token_ids = task.preprocessor.generate_preprocess([prompt])
    # We don't care about negative prompts here, but the model expects
    # them.
    negative_token_ids = task.preprocessor.generate_preprocess([""])
    return task.backbone.encode_text_step(token_ids, negative_token_ids)

def denoise_with_text_embeddings(embeddings, num_steps=28, guidance_scale=7.0):
    # Creates pure noise to denoise into an image
    latents = random.normal((1, height // 8, width // 8, 16))
    for step in range(num_steps):
        latents = task.backbone.denoise_step(
            latents,
            embeddings,
            step,
            num_steps,
            guidance_scale,
        )
    return task.backbone.decode_step(latents)[0]

# Rescales our images back to [0, 255]
def scale_output(x):
    x = ops.convert_to_numpy(x)
    x = np.clip((x + 1.0) / 2.0, 0.0, 1.0)
    return np.round(x * 255.0).astype("uint8")

embeddings = get_text_embeddings(prompt)
image = denoise_with_text_embeddings(embeddings)
scale_output(image)

Our generation process has three distinct parts:

• First, we take our prompts, tokenize them, and embed them with our text encoder.
• Second, we take our text embeddings and pure noise and progressively "denoise" the noise into an image. This is the same as the flower model we just built.
• Lastly, we map our model output, which are from [-1, 1] back to [0, 255] so we can render the image.

One thing to note here is that our text embeddings actually contain four separate tensors:

>>> [x.shape for x in embeddings]
[(1, 154, 4096), (1, 154, 4096), (1, 2048), (1, 2048)]

Rather than only passing the final, embedded text vector to the denoising model, the Stable Diffusion authors chose to pass both the final output vector and the last representation of the entire token sequence learned by the text encoder. This effectively gives our denoising model more information to work with. The authors do this for both the positive and negative prompts, so we have a total of four tensors here:

• The positive prompt's encoder sequence
• The negative prompt's encoder sequence
• The positive prompt's encoder vector
• The negative prompt's encoder vector

With our generate() function decomposed, we can now try walking the latent space between two text prompts. To do so, let's build a function to interpolate between the text embeddings outputted by the model.

from keras import ops

def slerp(t, v1, v2):
    v1, v2 = ops.cast(v1, "float32"), ops.cast(v2, "float32")
    v1_norm = ops.linalg.norm(ops.ravel(v1))
    v2_norm = ops.linalg.norm(ops.ravel(v2))
    dot = ops.sum(v1 * v2 / (v1_norm * v2_norm))
    theta_0 = ops.arccos(dot)
    sin_theta_0 = ops.sin(theta_0)
    theta_t = theta_0 * t
    sin_theta_t = ops.sin(theta_t)
    s0 = ops.sin(theta_0 - theta_t) / sin_theta_0
    s1 = sin_theta_t / sin_theta_0
    return s0 * v1 + s1 * v2

def interpolate_text_embeddings(e1, e2, start=0, stop=1, num=10):
    embeddings = []
    for t in np.linspace(start, stop, num):
        embeddings.append(
            (
                # The second and fourth text embeddings are for the
                # negative prompt, which we do not use.
                slerp(t, e1[0], e2[0]),
                e1[1],
                slerp(t, e1[2], e2[2]),
                e1[3],
            )
        )
    return embeddings

You'll notice we use a special interpolation function called slerp to walk between our text embeddings. This is short for spherical linear interpolation — it's a function that has been used in computer graphics for decades to interpolate points on a sphere.

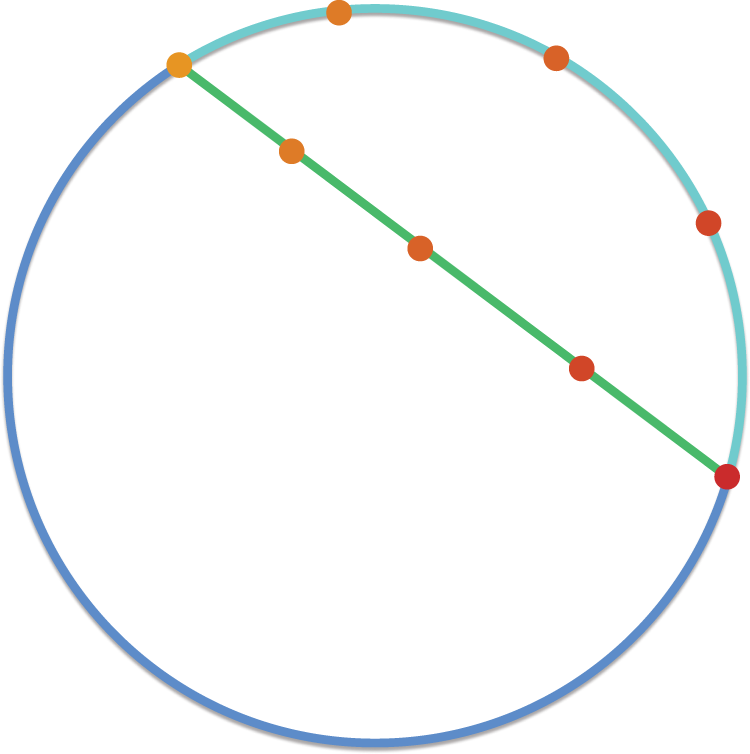

Don't worry too much about the math; it's not important for our example, but it is important to understand the motivation. If we imagine our text manifold as a sphere and our two prompts as random points on that sphere, directly linearly interpolating between these two points would land us inside the sphere. We would no longer be on its surface. We would like to stay on the surface of the smooth manifold learned by our text embedding — that's where embedding points have meaning for our denoising model. See figure 17.16.

Of course, the manifold learned by our text embedding model is not actually spherical. But it's a smooth surface of numbers all with the same rough magnitude — it is sphere-like, and interpolating as if we were on a sphere is a better approximation than interpolating as if we were on a line.

With our interpolation defined, let's try walking between the text embeddings for two prompts and generating an image at each interpolated output. We will run our slerp function from 0.5 to 0.6 (out of 0 to 1) to zoom in on the middle of the interpolation right when the "morph" becomes visually obvious (figure 17.17):

prompt1 = "A friendly dog looking up in a field of flowers"
prompt2 = "A horrifying, tentacled creature hovering over a field of flowers"
e1 = get_text_embeddings(prompt1)
e2 = get_text_embeddings(prompt2)

images = []
# Zooms in to the middle of the overall interpolation from [0, 1]
for et in interpolate_text_embeddings(e1, e2, start=0.5, stop=0.6, num=9):
    image = denoise_with_text_embeddings(et)
    images.append(scale_output(image))
display(images)

This might feel like magic the first time you try it, but there's nothing magic about it — interpolation is fundamental to the way deep neural networks learn. This will be the last substantive model we work with in the book, and it's a great visual metaphor to end with. Deep neural networks are interpolation machines; they map complex, real-world probability distributions to low-dimensional manifolds. We can exploit this fact even for input as complex as human language and output as complex as natural images.

Summary

• Image generation with deep learning is done by learning latent spaces that capture statistical information about a dataset of images. By sampling and decoding points from the latent space, you can generate never-before-seen images. There are three major tools to do this: VAEs, diffusion models, and GANs.

• VAEs result in highly structured, continuous latent representations. For this reason, they work well for doing all sorts of image editing in latent space: face swapping, turning a frowning face into a smiling face, and so on. They also work nicely for doing latent space-based animations, such as animating a walk along a cross section of the latent space, showing a starting image slowly morphing into different images in a continuous way.

• Diffusion models result in very realistic outputs and are the dominant method of image generation today. They work by repeatedly denoising an image, starting from pure noise. They can easily be conditioned on text captions to create text-to-image models.

• Stable Diffusion 3 is a state-of-the-art pretrained text-to-image model that you can use to create highly realistic images of your own.

• The visual latent space learned by such text-to-image diffusion models is fundamentally interpolative. You can see this by interpolating between the text embeddings used as inputs to the diffusion process and achieve a smooth interpolation between images as output.
